Add uri¶

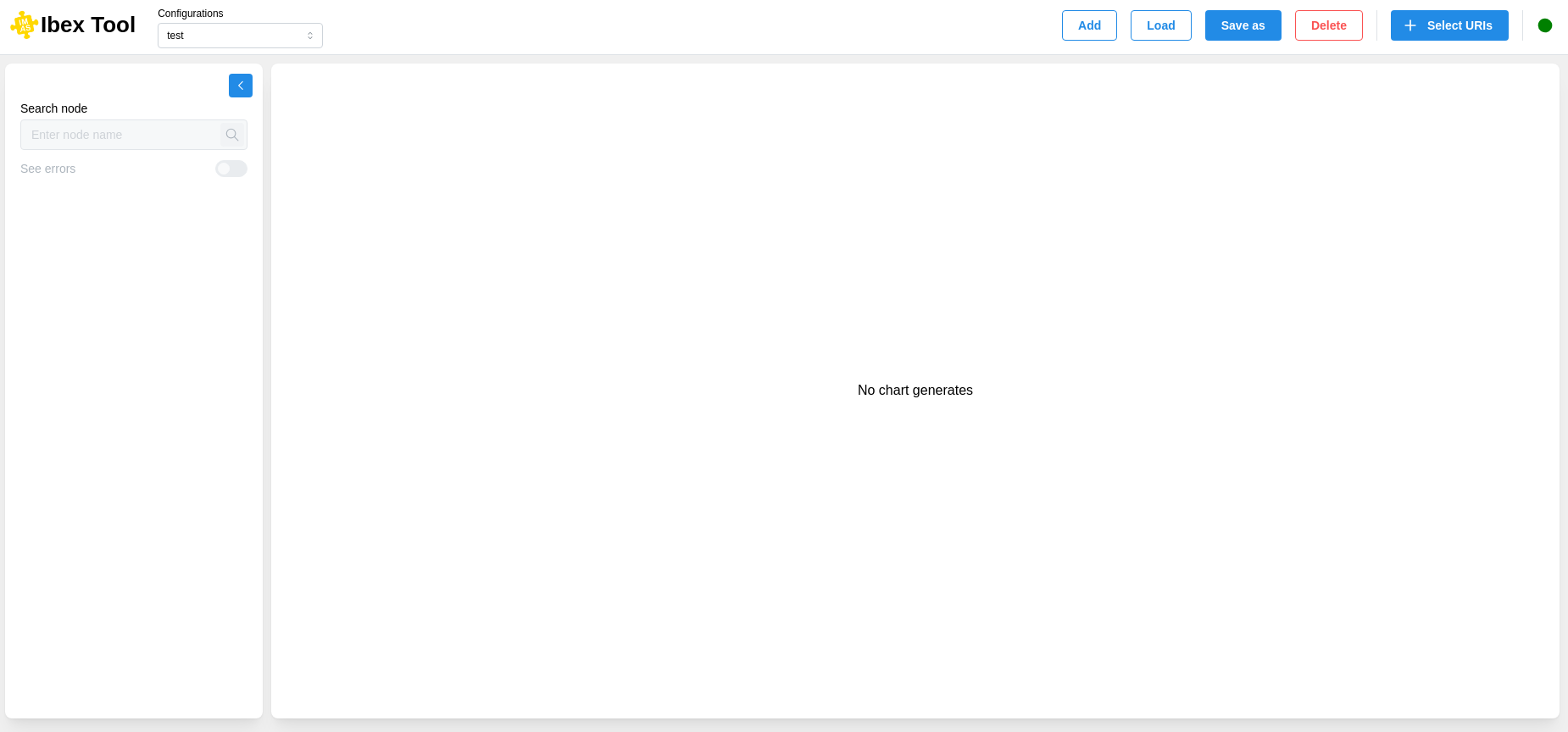

When a configuration becomes accessible to the user, the window will be completed. On the left, you will find the different hierarchies of the selected URIs. On the right, there will be a draggable canvas displaying the various charts that have been generated based on the data from the hierarchy.

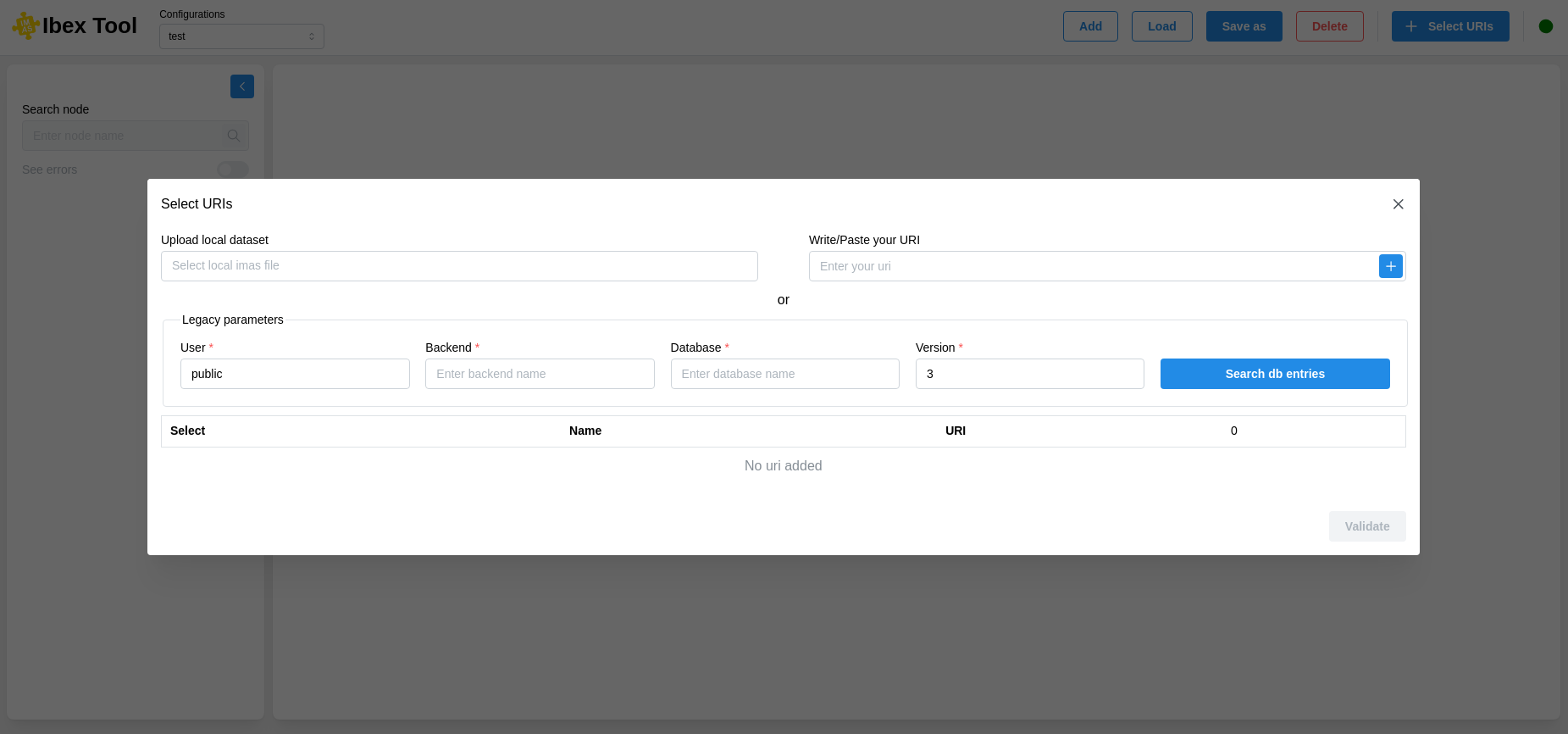

To add a URI, you can click the “Select URIs” button at the top right of the window, It will open a modal with fields to fill in.

Thanks to this modal, you can retrieve URIs in different ways :

From a file (Upload local dataset):

Upload a file using the input from the file explorer, and then the list of URIs will appear in the table below.

From the input (Write/Paste a URI):

Write or copy-paste an existing URI and add it to the table below. A request will verify if a URI exists and is valid.

From configurable inputs (Legacy parameters):

This component can receive several parameters (User, Backend, Database, Version). You must provide at least two parameters (User and Version).
